UN-570 eLoran Transmission Site Integrated Monitor and Control Set

General Overview of the UN-570 Transmission Monitor and Control Set

The UN-570 eLoran Transmission Site Integrated Monitor and Control Set is a critical component of the UrsaNav® UN-2000 Signal Generation, Monitor, and Control System. Purpose-built for transmission sites, the UN-570 combines secure monitoring, diagnostics, control, and data logging into one streamlined platform.

This rugged, rack-mounted solution offers real-time oversight of all connected transmission subsystems—including timing generators, eLoran receivers, and interface units—via both local and remote access. Through automatic failover and continuous health monitoring, the UN-570 ensures operational resilience, making it an ideal choice for managing high-assurance Positioning, Navigation, and Timing (PNT) infrastructure.

Designed with ELEGANT PulsePoint™ software, the UN-570 simplifies system management and provides intuitive access to critical telemetry and control functions, helping operators maximize uptime and minimize response time during faults or anomalies.

Contact Us

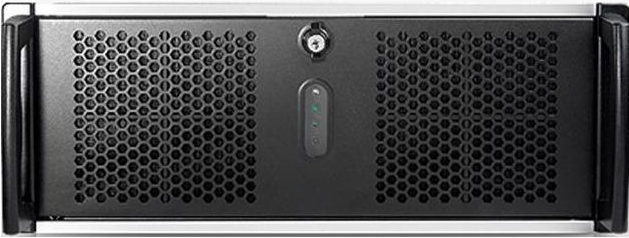

UN-570 Transmission Site Integrated Monitor & Control Set
UN-570 Transmission Site Integrated Monitor & Control Set

Key Features of the UN-570

  • All-in-One eLoran Monitor and Control Set: Combines monitoring, control, diagnostics, and data logging in one integrated platform

  • Redundant Monitoring: Built-in dual-system health monitoring and seamless failover capabilities

  • Secure Remote & Local Access: Role-based access for on-site and off-site operators

  • Real-Time System Diagnostics: Delivers alerts and logs for quick issue identification and resolution

  • Comprehensive Data Logging: Archives both real-time and historical system data for compliance and analysis

  • Seamless Integration: Fully compatible with the UN-2100 System Management & Control System

  • Rugged Hardware Platform: Rack-mounted COTS computer with display and interface peripherals

  • Advanced Software Control: Features the robust ELEGANT PulsePoint™ interface tailored for transmission site operations

  • Remote Configuration & Updates: Field-upgradeable firmware and customizable monitoring thresholds.

  • DGNSS Reference Station Capability: Can be configured to serve as a Differential GNSS Reference Station.

Applications of the UN-570

  • Managing eLoran transmission sites
  • Remote control and diagnostics of timing-critical infrastructure
  • Enabling redundancy and fault recovery for high-reliability PNT systems
  • Providing a centralized interface for all transmission equipment on-site

Why Choose the UN-570?

The UN-570 consolidates critical eLoran monitoring and control functions into a single, intuitive system, reducing complexity at the transmission site. It enhances situational awareness and operational automation, allowing personnel to make faster, more informed decisions. With built-in redundant failover capability, the UN-570 ensures continuous performance and minimizes the risk of site-level downtime. Designed to support the requirements of secure and resilient PNT systems, it delivers reliable oversight and centralized control for mission-critical infrastructure.

Talk to a System Integration Expert

Ready to streamline and secure your eLoran transmission site operations? Contact us to learn how the UN-570 Integrated Monitor and Control Set supports system resilience, continuity, and visibility across your infrastructure.
